Ⅰ.Brief introduction

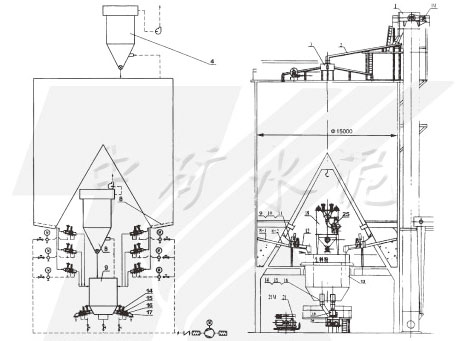

Continuous homogenization technology of German KHD company is applied in the IBAU silo. Outside there is a mixing bin, and a big cone at the center of the bottom silo. The weight of raw material in silo is passed to silo housing through the cone. Bottom silo circular room is separated into six aerating zones, incling to the center with 10 degree. Each zone has 6 aerating cases with three specifications. When aerating and discharging, the raw material is conveyed to one radial arrangement aerating case in the first, and then conveyed to the 4000mm measuring silo at the bottom of silo center through air slide via outlet at the bottom of cone body. When discharge eing, raw material will cut off horizontal material layer with the gravity and mixture during the flow process up and down. After entering mixture silo, homogenize again and aerate continuously. The homogenization effect of H can reach 6 to 8. Power consumption of raw material is 0.1~0.2Kwh/t.

Ⅱ、  Technical parameter list

No.
Equipment name
Specification
Quantity
Remarks
1
Dust filter of raw material silo


Confirmed by the process.
2
Aerating pipeline of bottom silo


Confirmed by the process.
3
Roots fan

1set
Confirmed by the process.
4
Aerating case in silo

1set
Confirmed by the process.
5
Aerating case screw gate
B500
6set

6
Pneumatic on-off valve
B500
6set

7
Air slide
B500
6set

8
Dust filter of homogenization silo

1set
Confirmed by the process.
9
Homogenization silo
Φ4000mm
1set

10
Aerating screw gate
B300
2sets

11
Pneumatic on-off valve
B300
2sets

12
Motorized flow valve
B300


13
Discharge funnel




Ⅳ、IBAU library schemes
