Ⅰ、 Brief introduction
Continuous homogenization silo is feeding material continuously from top silo. Aerate and mix at the same time and discharge continuously to reduce discharge pressure in silo, eliminate funnel flow. There is 6 to 12 discharge holes around the mixture room. There are 6 to 12 aerating zone between mixture room and silo wall. When discharge, feed material in turn to the center room when discharge. The material of entrance mixture room will mix again because of aerating continuously. Make qualified raw material discharge from high position and discharge from over flow pipe. The rest air will be discharged into external circular zone and draw to purify in the dust filter. But request raw material dosing system stable and dependable. It is characterized by low cost, lower power consumption, nimble technical arrangement, tight structure and simple operation etc. The homogenized value is 5 to 9. Power consumption is 0.1-0.2kwh/t.

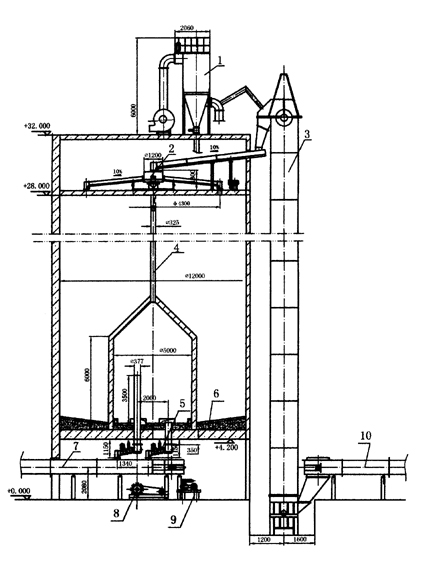

Ⅱ.Sketch


Equipment list of Φ12m continuous homogenization silo

No.
Name and specification
Unit
Qty.
Remarks
1
Air case pulse dust filterPPCS324 Fan926 No 8D Star dust discharge valve300×300
set
1

2
Top silo inlet system
set
1

3
Elevator TGD400×38000 Conveying capacity150m3/h Speed of the hopper1.5m/s
Reducer ZLY2220 Motor Y225S4 37KW
set
1

4
Air exhaust pipe of center room
set
1

5
Discharge device B400/315
set
2

6
Aerating case in silo and pipeline system
set
1

7
FU chain conveyor FU400×L Conveying capacity:110m3/h
speed of the hopper:30m/min
set
1
L is confirmed by the process.
8
4 8-spouts air distributor Φ500mm Cycloid pin wheel reducer:BWY27151505 1.5KW
set
1

9
Roots fanfor homogenizationARD145 Air volume 18.4m3/min Air pressure :68.6Kpa 37KW Air filterinlet and outlet silencer , manometer, check valve, reversion valve, connection and pedestal.
set
1

10
FU chain conveyor FU400×L Conveying capacity:110m3/h Speed of the hopper: 30m/min
set
1
L is confirmed by the process.
