Ⅰ、 Brief introduction
Interval homogenization silo is one kind of partitioning homogenization, which have has good homogenization effect. It is applicable in inaccurate raw material dosing system with small change of raw material content. After raw material enter into silo in some height, aerate and mix in turn according to time sequence of distributed valve or valve, sampling testing, check and mix again. Till raw material is qualified, leave the silo. It is characterized by simple operation, and good homogenization efficiency. The homogenized value can reach 10-12, power consumption is 0.12－0.25kwh/t.

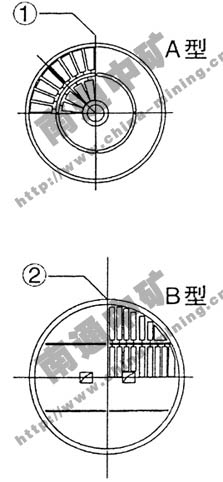

Ⅱ.Sketch
Ⅲ、Technical parameter
|
Dia. Of homogenization silo
Equipment
|
Φ6000
|
Φ8000
|
|||||
|
No.
|
Name
|
Specification
|
Qty.
|
Remarks
|
Spec.
|
Qty.
|
Remarks
|
|
1
|
Flat bag dust filter
|
SD42
|
1set
|
|
SD52
|
1set
|
|
|
2
|
6-spouts raw material distributor
|
Φ800
|
1set
|
Capacity:80T/H
|
Φ1200
|
1set
|
Capacity120T/H
|
|
3
|
Air slide
|
B315
|
1set
|
Capacity:60T/H
|
B315
|
1set
|
Capacity:60T/H
|
|
4
|
Measuring silo manhole
|
Φ250
|
1set
|
|
Φ250
|
1set
|
|
|
5
|
Inspection manhole
|
700×800
|
1set
|
|
700×800
|
1set
|
|
|
6
|
Side silo manhole
|
600×800
|
1set
|
|
600×800
|
1set
|
|
|
7
|
Aerating case
|
|
1set
|
|
|
1set
|
|
|
8
|
Manual single spout and bottom silo discharge
|
Φ150
|
1set
|
Capacity：80－100T/H
|
Φ100
|
2sets
|
Capacity：80－100T/H
|
|
9
|
Screw conveyor
|
LS315
|
1set
|
Confirmed by the process.
|
LS400
|
1set
|
Confirmed by the process.
|
|
10
|
Single 4-spouts rotary air distributor（pneumatic＜motorized＞Type O ball valve）
|
Φ150
|
1set/4sets
|
|
Φ500
|
1set
|
Power1.5KW
|
