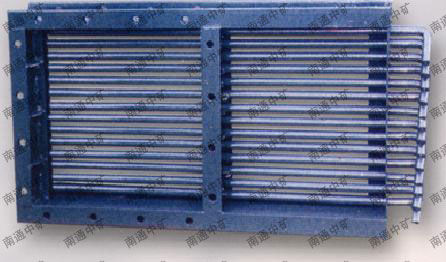

Single and double layer rod valve

Miss Shao : +86-1862762655

TEL: +86-513-88400999 FAX: +86-513-88400998 E-mail: jszk@vip.163.com

Ⅰ、  Application
It is new type of gate developed according to the process request such as conveying control and feeding of middle and small solid and lump material in building material, mine and metallurgy etc. Suit to control material of ≤50mm.
Ⅱ、Structure character
 Single and double layer bar valve is characterized by simple structure, easy operation, no blockage. It
overcomes the shortcoming of big starting and closing force for big grain material and of that it cannot be closed. As it is
operated by single rod, it is operated conveniently and nimbly. The whole structure is welded by
excellent steel. Thus it is with good rigidity, free deformation, long life and without maintenance. It is an ideal piece of equipment for middle and small crystal and lump material.
Ⅲ、  Work principle
Single and double layer bar valve is composed of frames and rods. When rods are inserted into frame, one group of rods will compose into one parallel grating plate and block the lump material at one side of the gate. If one grating plate is taken out, it will appear one bigger clearance and material can go to the side of the gate. The quantity of bars taken out is decided by the requirments of the process.
Ⅳ、Type description
Ⅴ、Main technical figures

Suitable media
Below Φ500mm grain material
Suitable temperature()
≤350

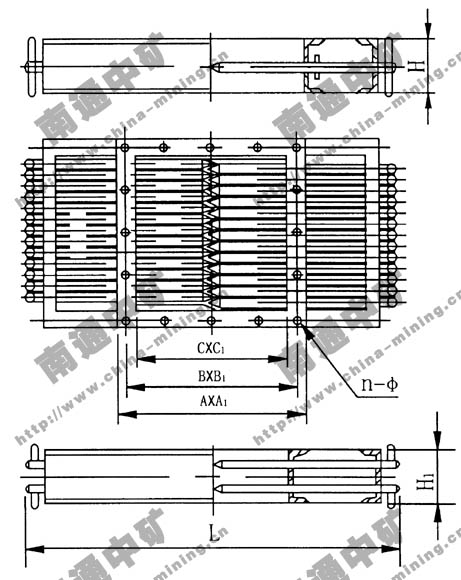

Ⅵ、Main outline and connection dimension

Specification
A×A1
B×B1
C×C1
L
H
H1
n-Φ
300×300
390×390
350×350
300×300
800
120
140
8-Φ14
400×400
490×490
450×450
400×400
1000
120
140
12-Φ14
500×500
610×610
560×560
500×500
1200
140
160
16-Φ18
600×600
710×710
660×660
600×600
1400
140
160
16-Φ18
700×700
820×820
770×770
700×700
1600
160
180
20-Φ18
800×800
920×920
870×870
800×800
1800
160
180
20-Φ18
900×900
1030×1030
972×972
900×900
2000
160
180
24-Φ123
1000×1000
1130×1130
1068×1068
1000×1000
2200
160
180
24-Φ123
1100×1100
1240×1240
1183×1183
1100×1100
2500
180
200
28-Φ123
1200×1200
1340×1340
1280×1280
1200×1200
2700
180
200
32-Φ123
