Motorized wedge gate valve

Miss Shao : +86-1862762655

TEL: +86-513-88400999 FAX: +86-513-88400998 E-mail: jszk@vip.163.com



Ⅰ、Brief introduction

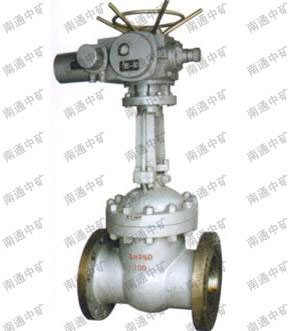

Motorized wedge gate valve is a kind of valve with linear movement. Motorized wedge gate valve is used together with type Z multi rotary actuator which has switch type and intelligent type. The operation of motorized wedge gate is simple and it is a normal starting and closing valve. Motorized wedge gate valve will cut off flow media in pipeline with the plate moving up and down. Motorized wedge gate is widely used in generating plant, metallurgy, petroleum, chemical industry, paper-making and waste water treatment etc.

Ⅱ、Characters and application range
1、Small flow resistance, Sealing surface will be brushed and erode in a small degree(The opening of gate valve is big.).
2、The starting is bigger and sealing capacity is good. The direction of media is not limited , not approaching flow and the pressure is not reduced.
3、The structure is simple and manufacturing workmanship is good. Application range is wide.
4、The torque of closing valve is smaller.

 Ⅲ、Technical parameter and capacity figures
type
Rated torque (N.m)
Nominal push (KN)
The max. diameter of valve pole (mm)
The Max.speed
(ring)
Hand ratio
Output speed
(r/min)
Motor
Type
Power
(KW)
Current
(A)
Z5
50
20
28
10
1:1
12
YDF112
0.12
0.7
Z10
100
40
28
50
1:1
24
YDF212
0.25
1.3
36
YDF221
0.37
1.6
Z15
150
40
28
50
1:1
24
YDF221
0.37
1.6
36
YDF222
0.55
2.4
Z20
200
100
40
50
1:1
18
YDF221
0.37
1.6
Z30
300
100
40
50
1:1
18
YDF222
0.55
2.4
Z45
450
150
48
120
1:1
24
YDF311
1.1
3.4
20:1
36
YDF312
1.5
4.5
Z60
600
150
48
120
1:1
24
YDF312
1.5
4.5





20:1
36
YDF321
2.2
6.5
Z 90
900
200
60
120
1:1
24
YDF321
2.2
6.5
25:1
36
YDF322
3
9
Z120
1200
200
60
120
1:1
24
YDF322
3
9
25:1
Z180
1800
325
70
150
25:1
24
YDF411
4
11
36
YDF412
5.5
14
Z250
2500
325
70
150
25:1
24
YDF412
5.5
14
Z250
3500
700
78
120
25:1
18
YDF421
7.5
19
Z500
5000
700
78
120
25:1
18
YDF422
10
26
Remarks:If it needs, we can provide other speed.

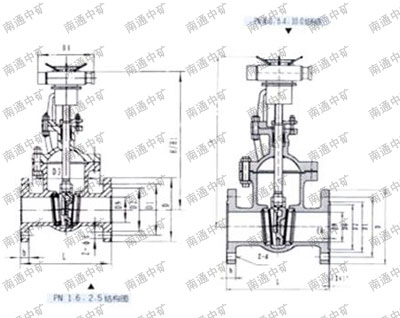

Outline dimension and connection dimension of
Z941H—16C  Z941Y—16P  Z941Y—16R Z941Y—16I (1.6MPa)
Nominal diameter DN(mm)
Dimension(mm)
Weight (kg)
L
D
D1
D2
b
Z—Φd
D3
H
L1
L2
Do
40
240
145
110
85
16
4-Φ18






50
250
160
125
100
16
4-Φ18
165
574
170
308
400
106
65
265
180
145
120
18
4-Φ18

625




80
280
195
160
135
18
8-Φ18
205
665
170
308
400
126
100
300
215
180
155
20
8-Φ18
232
756
170
349
400
136
125
325
245
210
185
22
8-Φ18
232
756
325
411
250
145
150
350
280
240
210
24
8-Φ23
335
758
325
411
250
210
200
400
335
295
265
26
12-Φ23
400
1074
460
276
250
310
250
450
405
355
320
30
12-Φ25
475
1269
530
353
360
455
300
500
460
410
375
30
12-Φ25
530
1514
545
368
360
560
350
550
520
470
435
34
16-Φ25
610
1750
577
426
400
885
400
600
580
525
485
36
16-Φ30
710
1900
617
445
400
1120
450
650
640
585
545
40
20-Φ30

2070


400
1320
500
700
705
650
608
44
20-Φ34
800
2240
408
573
400
1516

Z941H—25  Z941Y—25P  Z941Y—25R  Z941Y—25I  (2.5Mpa)
Nominal diameter DN(mm)
Dimension(mm)
Weight
(kg)
L
D
D1
D2
b
Z—Φd
D3
H
L1
L2
Do
40
240
145
110
85
18
4-Φ18






50
250
160
125
100
20
4-Φ18
165
378
197
363
400
110
65
265
180
145
120
22
4-Φ18
185
378
197
363
400
116
80
280
195
160
135
22
4-Φ18
213
580
197
363
400
135
100
300
230
190
160
24
8-Φ23
260
770
325
381
250
149
125
325
270
220
188
28
8-Φ25
295
885
325
381
250
192
150
350
300
250
218
30
8-Φ25
335
950
325
381
250
216
200
400
360
310
278
34
12-Φ25
400
1090
325
381
250
286
250
425
425
370
332
36
12-Φ30
475
1290
325
441
250
366
300
450
485
430
390
40
16-Φ30
530
1510
408
475
360
658
350
550
550
490
448
44
16-Φ34
610
1710
408
505
360
774
400
600
610
550
505
48
16-Φ34
710
1922
445
558
400
989
450
650
660
600
555
50
20-Φ34

2080




500
700
730
660
610
52
20-Φ41

2260




600
800
840
770
718
56
20-Φ41

2750




700
900
955
875
815
60
24-Φ48

3590




800
1000
1070
990
930
64
24-Φ48

4300




Z
941H—40  Z941Y—40P  Z941Y—40R  Z941Y—40I (4.0Mpa)
Nominal diameter DN(mm)
Dimension(mm)
Weight
(kg)
L
D
D1
D2
b
Z—Φd
D3
H
L1
L2
Do
40
240
145
110
85
76
4-Φ18
18




60
50
250
160
125
100
88
4-Φ18
20
480



77
65
280
180
145
120
110
8-Φ18
22
595



86
80
310
195
160
135
121
8-Φ18
22
690



140
100
350
230
190
160
150
8-Φ23
24
760



160
125
400
270
220
188
176
8-Φ25
28
830



260
150
450
300
250
218
204
8-Φ25
30
910



300
200
550
375
320
282
260
12-Φ30
38
1150



320
250
650
445
385
345
313
12-Φ34
42
1366
577
426
400
595
300
750
510
450
408
364
16-Φ34
46
1580
617
401
400
800
350
850
570
510
465
422
16-Φ34
52
1750
621
595
500
1320
400
950
655
585
535
474
16-Φ41
58
2035
712
430
400
1870
500
1150
755
670
612
575
20-Φ48
62
2423
712
430
400
2350

Z941H—64   Z941Y—64P   Z941Y—64R   Z941Y—64I   (6.4Mpa)
Nominal diameter DN(mm)
Dimension(mm)
Weight
(kg)
L
D
D1
D2
b
Z—Φd
D3
H
L1
L2
Do
50
250
175
135
105
88
4-Φ23
26
574
381
325
250
87
65
280
200
160
130
110
8-Φ23
28
688



94
80
310
210
170
140
121
8-Φ23
30
662
381
325
250
138
100
350
250
200
168
150
8-Φ25
32
772
381
325
250
190
125
400
295
240
202
176
8-Φ30
36
1050
407
573
320
310
150
450
340
280
240
204
8-Φ34
38
1000
411
325
250
327
200
550
405
345
300
260
12-Φ34
44
1293
407
613
320
420
250
650
470
400
350
313
12-Φ41
48
1450
617
455
400
722
300
750
530
460
412
364
16-Φ41
54
1685
534
780
500
790
350
850
595
525
475
422
16-Φ41
60
1875
534
780
500
1100
400
930
670
585
525
474
16-Φ48
66
2040
937
430
400
2040
500
1150
800
705
640
576
20-Φ54
70
2600
937
430
400
2630

Z941H—100  Z941Y—100P  Z941Y—100R  Z941Y—100I  (10.0Mpa)
Nominal
diameter
 DN(mm)
Dimension(mm)
Weight
(kg)
L
D
D1
D2
D8
b
f
Z-Φd
H
50
250
195
145
112
85
28

4-Φ25
680
150
65
280
220
170
138
110
32

8-Φ25
730
180
80
310
230
180
148
115
34
3
8-Φ25
795
190
100
350
265
210
172
145
3
3
8-Φ30
880
300
125
400
310
250
210
175
42
3
8-Φ34
943

150
450
350
290
250
205
46
3
12-Φ36
1234
400
200
550
430
360
312
265
54
3
12-Φ41
1339
484
250
650
500
430
382
320
60
3
12-Φ41
1470
803
300
750
585
500
442
375
70
4
16-Φ41
1830

350
850
655
560
498
422
76
4
16-Φ54
2185
1510

Z941H—160   Z941Y—160I      (16.0Mpa)
Nominal
 diameter
 DN(mm)
Dimension(mm)
Weight
 (kg)
L
D
D1
D2
D8
b
f
Z-Φd
H
50
300
215
165
132
95
36

8-Φ25
700
180
65
340
245
190
152
110
44

8-Φ30
750
230
80
390
260
205
168
130
46
3
8-Φ30
815
250
100
450
300
240
200
160
48
3
8-Φ34
860
390
125
525
355
285
238
190
60
3
8-Φ41
970
450
150
600
390
318
270
205
66
3
12-Φ41
1224
748
200
750
480
400
345
275
78
3
12-Φ48
1490
1073

Z941H—200  Z941Y—200I       (20.0Mpa)
Nominal
 diameter
 DN(mm)
Dimension(mm)
Weight
 (kg)
L
D
D1
D2
D8
b
f
Z-Φd
H
50
350
210
160
128
95
40
3
8-Φ27
712

65
410
260
203
165
110
48
3
8-Φ30
765

80
470
290
230
190
160
54
3
8-Φ30
850

100
550
360
292
245
190
66
3
8-Φ34
980

125
650
385
318
270
205
76
3
12-Φ41
1080

150
750
440
360
305
240
82
3
12-Φ48
1140


Z941Y—250              (25.0Mpa)
Nominal diameter DN(mm)
Dimension(mm)
Weight
 (kg)
L
D
D1
D2
D8
b
f
Z-Φd
H
200
950
485
400

260
100
3.5
12-Φ42
1820
1619

Note for order
1. Product type and name
2.Nominal diameter DN(mm)
3.Nominal pressure
4. Temperature range
5.Material of valve body
6.Type of media
7.Back and forth pressure(Pressure difference)
8. Control signal
9. Requirement of actuator
10. Other special requests.
