Motorized Window Louver valve

Miss Shao : +86-1862762655

TEL: +86-513-88400999 FAX: +86-513-88400998 E-mail: jszk@vip.163.com

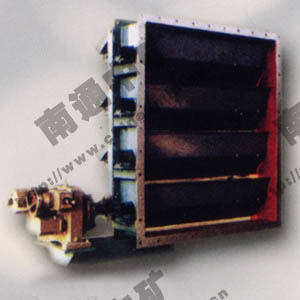

Motorized window louver valve is matched with motorized actuator, receiving adjusting or converting unit signal, controlling the opening of valve automatically, completing the task of adjustment. It is widely used in building material, metallurgy, mining, generating plant, petroleum, chemical industry, light industry etc. to adjust or control the media flow of pipeline automatically.
Main technical parameter

Nominal pressure
0.01MPa
Testing pressure of the shell
0.015MPa
Suitable temperature
-30~350℃
Suitable media
Dust gas
Leakage rate
3%
Starting and closing speed of valve
DKJ
25s/900
DMR
35.6s/900
Input signal(DC)
Type II 0-10mA 4-20mA
Input pathway
3pcs
Input resistance
Type II Ω Type III 250Ω
Power voltage
DKJ
Single phase220v/50Hz
DMR
Three phases 380V/50HZ
Media speed
25m/s
