DLVds -0.1 electric single, double flat gate valves

Miss Shao : +86-1862762655

TEL: +86-513-88400999 FAX: +86-513-88400998 E-mail: jszk@vip.163.com

application
Nantong China-Mining  DLVds -0.1 electric single, double flat gate valves are widely used in building material, metallurgy, mining and other industries dust material flow control of piping. The material flow is to control dust ideal equipments.
Second, characteristics
Simple structure, light weight, flexible operation, raplace singly. DLVds -0.1 electric single, double flat gate valve adopts the high quality carbon steel manufacturing, high strength, good performance and long service life etc. And screw and nuts are the soft shield structure, not by external dust influence.
Three, working principle
Nantong middlings DLVds -0.1 electric single, double flat gate mainly by the framework, screw nut, the handwheel, wheel, sluice composition, the handwheel (sprocket) rotation, screw with screw nut and disc for horizontal reciprocating motion, reach the valve opening and closing purpose.

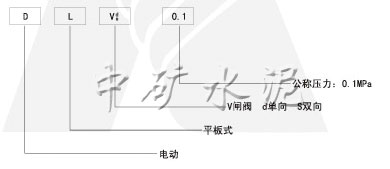

Four, model establishment instructions
Five, the main property parameter
Nominal pressure
Suitable temperature
Suitable media
0.1-0.6MPa
≤150
Dust material

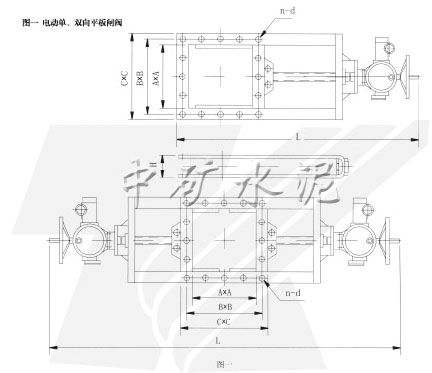

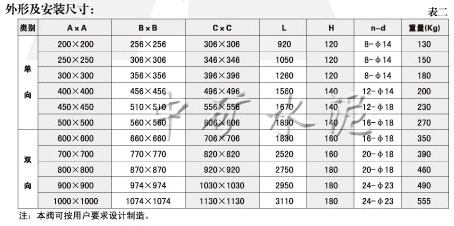

Six, appearance and connecting size
