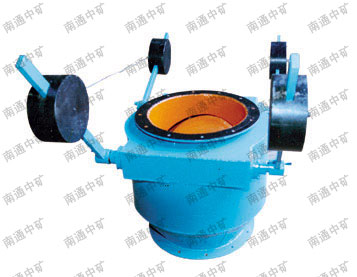

JXS circular air locking flap discharge valve

Miss Shao : +86-1862762655

TEL: +86-513-88400999 FAX: +86-513-88400998 E-mail: jszk@vip.163.com

Air locking flap discharge valve is widely used in building material, metallurgy, chemical industry, electricity, mine, light industry as air locking and discharging device of all kinds of dust filters’ hopper air locking and discharging device and mills, driers, material silos, cylindrical silos and closed conveying system.
structure features
The upper and lower valve plate of air locking flap discharge valve start and stop crossly and restore their positions automatically. There are: Z is hammer automatic restoring position structure and is characterized by stable operation, energy-saving, adjustable discharge volume, reliable discharge and air locking. C is hanging hammer automatic restoring position structure and is characterized by saving floor area, energy-saving, convenient discharging adjustment, reliable discharge and sir locking. B is the automatic restoring position structure of cam wheel, link drive and weight. D is the automatic restoring position structure of cam wheel, link drive and spring and is characterized by tight structure, reasonable design, stable operation, reliable discharge and air locking. It is ideal for all kinds of non-sticky solid powder material, grain material smaller than Φ10mm, crystal material, lump material and feeding & discharging working conditions. I type is single plate discharge. II type double plates discharge.
technical parameter list
suitable media
working temperature
discharging volume
dry powder
150
3-168m3/h
working principle:
Fast flap discharge valve is mainly composed of valve body, valve plate, valve shaft, rocker. I type is single layer. The program set by electric control system will start discharging via handspike shaking rocker. And then stop it. The upper and lower valve plate of II type will start and stop crossly through that handspike pulls rocker and start the discharging and air locking following the program set by electric control system. Those two actions will make one of the upper valve plates of the pipe closed all the time to achieve the aim of simultaneous discharging and air locking.
