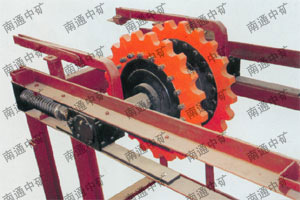

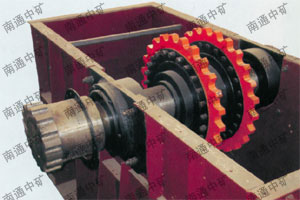

SCD two-tank clinker conveyor
1, level and tilt conveying dry granular materials.
2. More than 60 ° 2 and tilt.
3, transmission distance can reach 150m, the biggest hoisting height can reach 60m.
4, conveying can kingdom 75m3 / h - 240m3 / h.
5, traction chain by forging molding chain plate, high intensity, long service life.
6, carrying with traction separate structure, make conveyor stress reasonable, smooth operation.
7, material temperature acuities 250 ℃.
8 and appropriate materials, LiaoDu 50 200mm largest size.
SCD Groove clinker conveyor airborne level when transit (25 ° obliquity acuities throughput (units) rated m3 / h) :
|
model |
Transportation speed （m3/h） |
|||
|
0.15 |
0.2 |
0.25 |
0.3 |
|
|
SCD630 |
75 |
100 |
125 |
151 |
|
SCD800 |
96 |
128 |
160 |
192 |
|
SCD1000 |
120 |
160 |
200 |
240 |
SCD two-tank clinker conveyor in conveying (tilt Angle > 25 °) transmission capacity adjustment coefficient K
|
Tilt Angle |
30º |
35º |
40º |
45º |
50º |
55º |
60º |
|
Adjustment coefficient K |
0.95 |
0.91 |
1085 |
0.80 |
0.73 |
0.67 |
0.59 |
SCD Groove clinker conveyor chain technical parameters
|
Pitch P |
Inside wide b1 |
Coat diameter D |
Pin shaft diameter d |
Fixed pitch A*B |
Fixed aperture d1 |
Chain plate height H |
Chain plate height L |
The wideb2 |
Chain plate thicknessS |
The chain lengthn*p |
|
250 |
60 |
60 |
44 |
80*100 |
14 |
110 |
167 |
160 |
20 |
8*250 |
