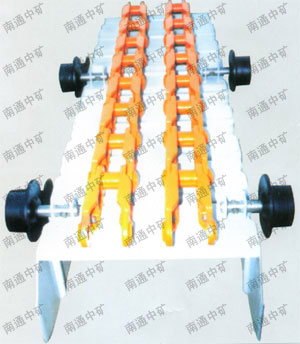

SCD trough conveyor for clinker

SCD two-tank clinker conveyor
1, level and tilt conveying dry granular materials.
More than 60 ° 2 and tilt.
3, transmission distance can reach 150m, the biggest hoisting height can reach 60m.
4, conveying can kingdom 75m3 / h - 240m3 / h.
5, traction chain by forging molding chain plate, high intensity, long service life.
6, carrying with traction separate structure, make conveyor stress reasonable, smooth operation.
7, material temperature acuities 250 ℃.
8 and appropriate materials, LiaoDu 50 200mm largest size.
SCD two-tank clinker conveyor airborne level when transit (25 ° obliquity acuities throughput (units) rated m3 / h) :

model
Transportation speed m3/h
0.15
0.2
0.25
0.3
SCD630
75
100
125
151
SCD800
96
128
160
192
SCD1000
120
160
200
240

SCD two-tank clinker conveyor in conveying (tilt Angle > 25 °) transmission capacity adjustment coefficient K

Tilt Angle

30º
35º
40º
45º
50º
55º
60º
Adjustment coefficient
K
0.95
0.91
1085
0.80
0.73
0.67
0.59

SCD two-tank clinker conveyor chain technical parameters

Pitch P
Inside wide b1
Coat diameter D
Pin shaft diameter
d
Fixed pitch A*B
Fixed aperture
d1
Chain plate height
H
Chain plate height
L
The wideb2
Chain plate thicknessS
The chain lengthn*p
250
60
60
44
80*100
14
110
167
160
20
8*250
